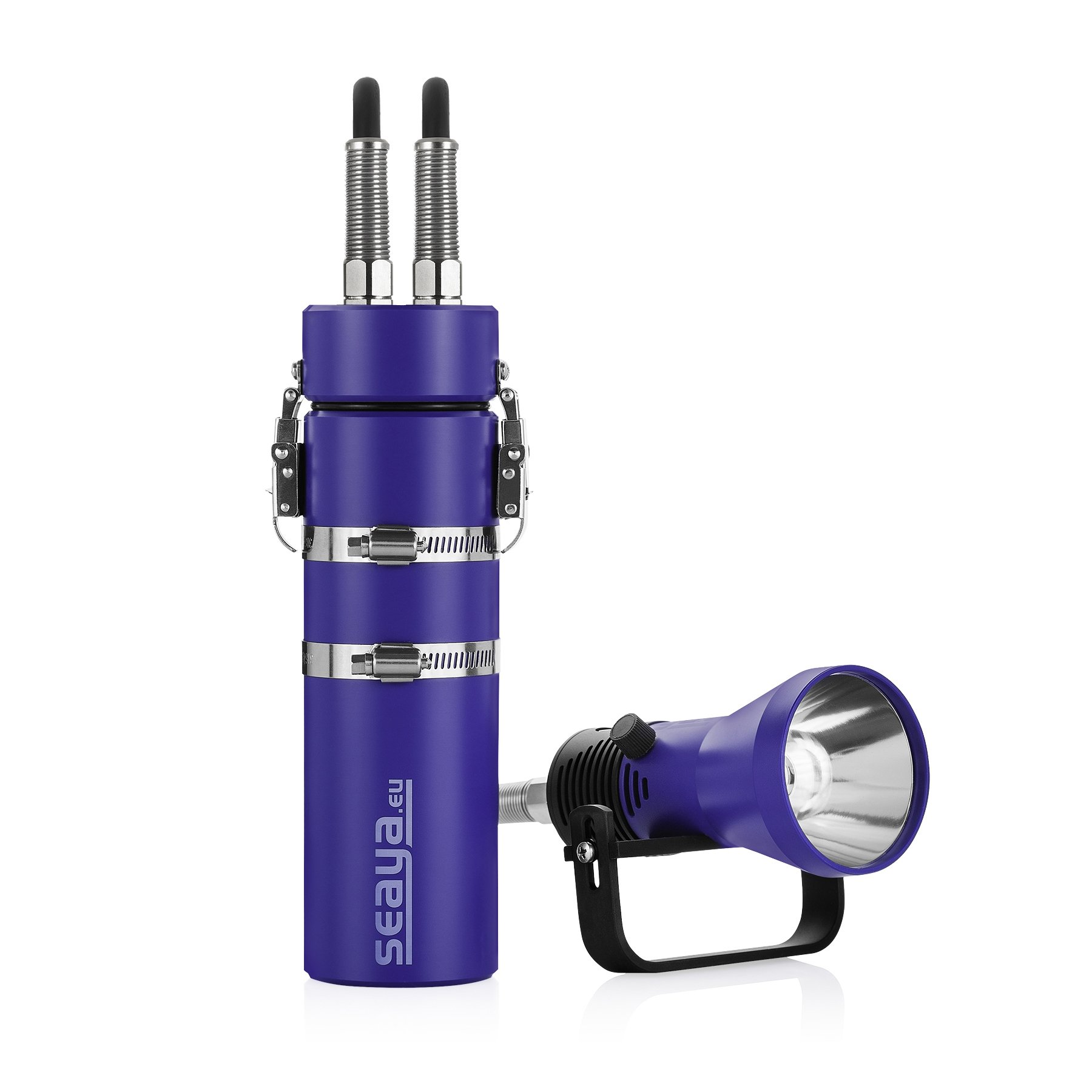

For this lighting setup, output 1 (light head to battery) is hard-wired by default, while output 2 is E/O. Both can be upgraded to E/O for an extra charge.

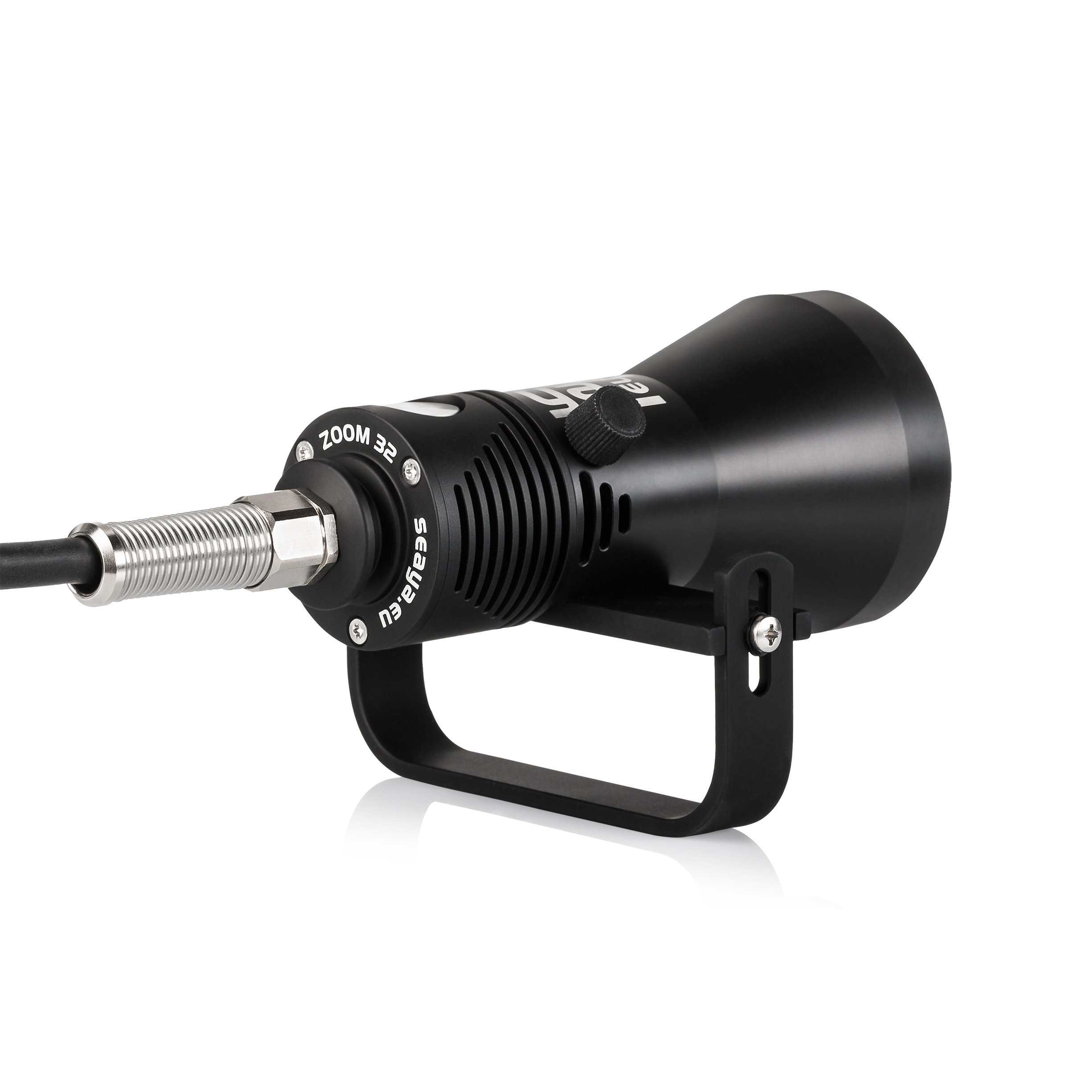

The SeaYa LED 32W Zoom is a focusable LED underwater light built with premium European and US components. Its sliding aluminium reflector allows easy adjustment of the beam angle from 7° to 35°, with a 70° constant glow. A lock screw secures the reflector in place once the desired angle is set. Delivering 4000 lumens, it offers 3 brightness settings (100%, 50%, 20%) controlled by a piezo push button.

Intelligent electronics maintain stable output and gradually reduce brightness to 20%, then 10% as the battery depletes, giving divers ample time to complete their dive safely. Equipped with active and passive thermal management, the SeaYa 32W Zoom prevents overheating and reducing light output in extreme conditions.

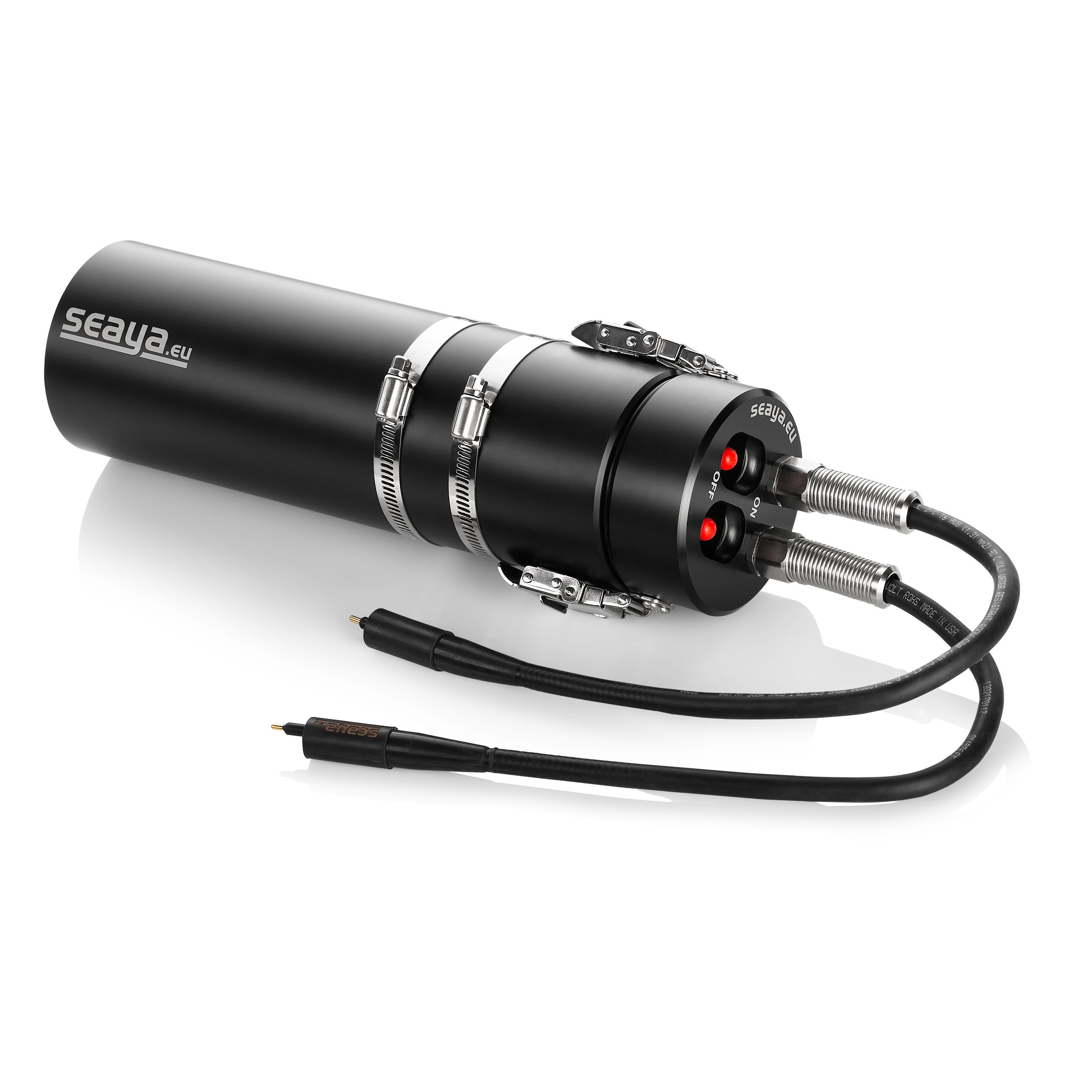

The battery packs use Panasonic Li-Ion cells in a 3S configuration, compatible with lighting and drysuit heating systems. They feature safety circuits to prevent overcharge, deep discharge, overload, and short circuit, and are UN38.3 certified for safe transport.

FEATURES:

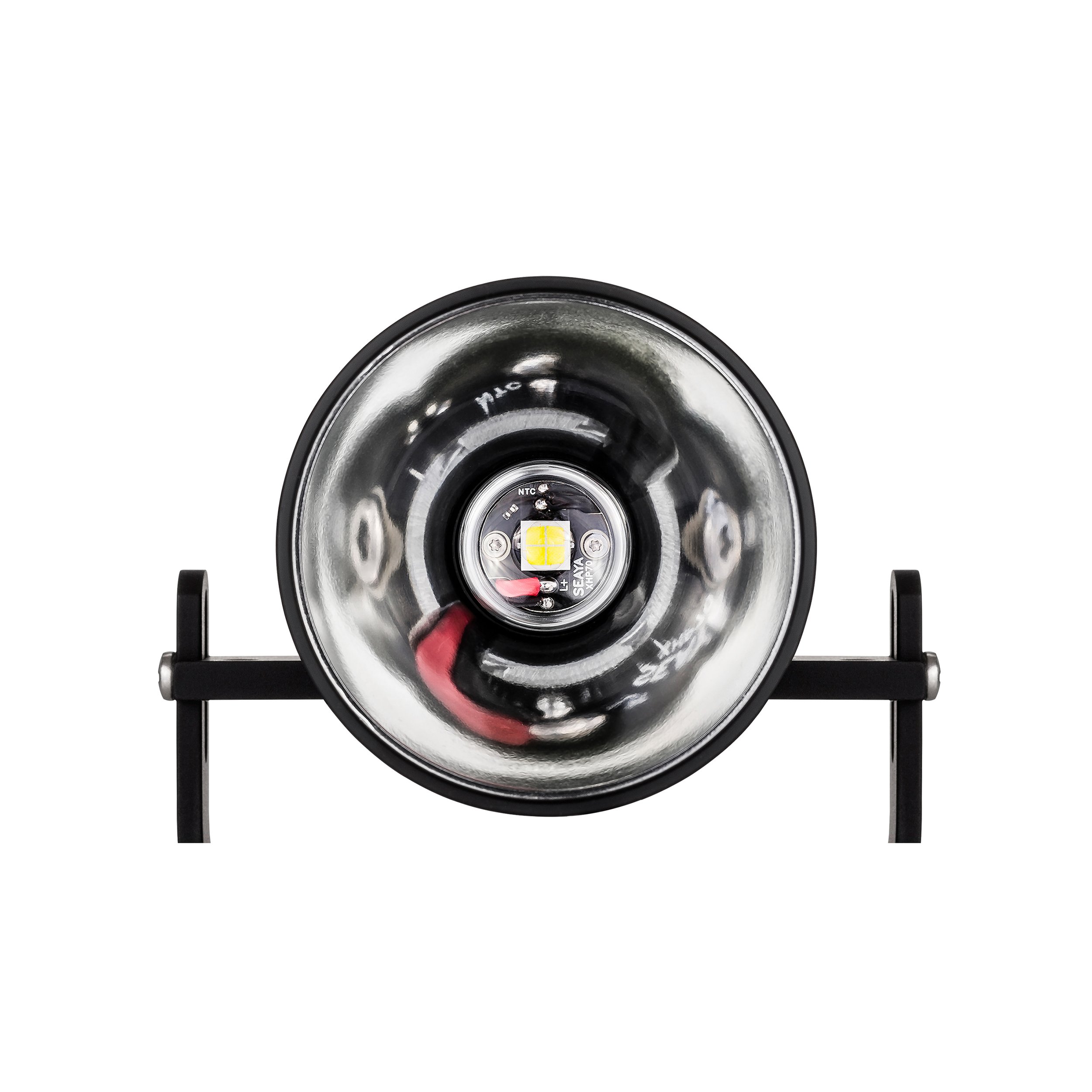

• 1x CREE® XHP70

• Lumen output: max. 4000lm

• Power: max. 32W

• Light angle: 7°-35° + constant glow 70°

• Light temperature: 5700K

• Head piezo push-button mode: 100%-50%-20% (OFF at additional charge)

• Type of handle: Goodman or Mini-G

• Battery switch: classic toggle

• Battery capacity:

  • 9Ah-120W

  • 13.8Ah-170W

  • 24.15Ah-200W

  • 41.4Ah-200W

• Charging time:

  • 13.8Ah: 4.5 hours (SY-CHARGLI-4A charger)

  • 24.15Ah: 8 hours (SY-CHARGLI-4A charger)

  • 41.4Ah: 8.5 hours (SY-CHARGLI-6A charger)

• Material:

  • Head: anodised aluminum

  • Battery: DELRIN® (POM-C)

• Head dimensions (length x diameter): 150mm x 75/50mm

• Weight on the surface:

  • Head with 13.8Ah battery: 2.1kg

  • Head with 24.15Ah battery: 2.7kg

  • Head with 41.4Ah battery: 3.7kg

• Colour:

  • Light body : black, red, blue, green, fuchsia, gold

  • Light reflector : black. blue

  • Battery: black, blue

• Max depth: 150m

CONTACT US TO ORDER
